The Reliance Panel

Name: Reliance Panel
Brand: Green Box Solar
Availability: InStock

Keep the essentials running through any outage — powered by a battery, a generator, even some EVs. Choose your circuits and power source, and we handle the install.

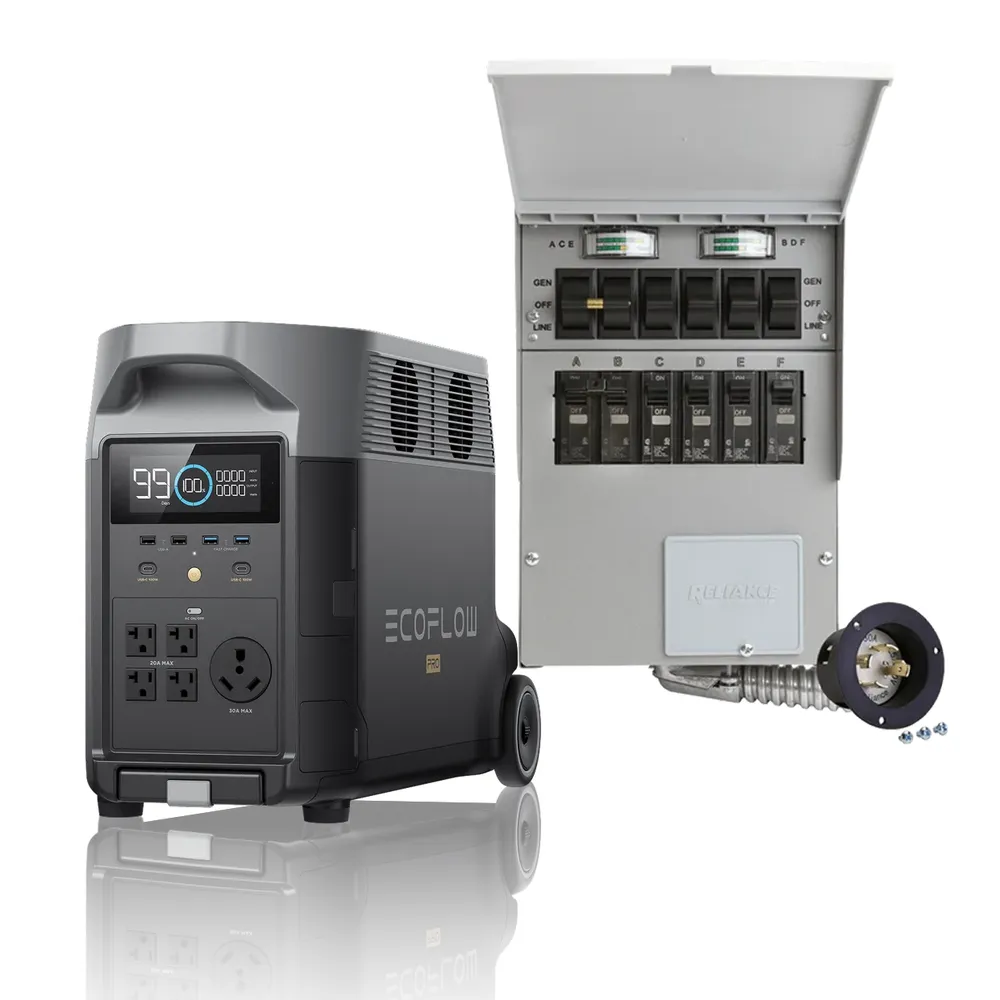

6 Circuit Panel (30A) bundle with EcoFlow Delta Pro

Utah installs

Installation

$2,899

installed

Due today $50

Just a refundable $50 deposit to reserve your install — nothing more is charged today. The remaining $2,849 is billed only after your install is complete.

1. Panel — how many circuits?

2. Power source — optional

About your selection

Transfer panel

Reliance Controls Pro/Tran 2 306A

A prewired manual transfer panel for up to six essential circuits, such as a furnace, refrigerator, lights, and key outlets.

Circuits: 6
Rating: 125/250V · 30A
Maximum: 3,750W at 125V / 7,500W at 250V
Inlet: NEMA L14-30

This is the 125/250V 306A model—not the 125V-only 306A1.

Power source add-on

EcoFlow Delta Pro

A portable LFP battery for essential-load backup. It starts with 3.6kWh of stored energy and can be expanded later with compatible extra batteries.

3.6kWh LFP battery
3,600W continuous output
7,200W surge output
Wi-Fi + Bluetooth monitoring

A qualified electrician selects the backed-up circuits and confirms compatibility with the chosen power source and all applicable electrical codes.

6 Circuit Panel (30A) — professionally installed$1,200
EcoFlow Delta Pro$1,799
Install bundle credit−$100
Total, installed$2,899
Due today (refundable deposit)$50
Billed after install$2,849

Reserve with a $50 refundable deposit — we'll reach out within 2 business days to confirm the details and schedule your install (Utah only).

✓ Professionally installed in Utah✓ Compatible portable-source backup✓ 5-year equipment warranty

How the Reliance Panel works

Whole-home backup without the whole-home price tag.

Built for portable backup

Use a compatible battery or generator to keep selected circuits powered during an outage. We confirm the source, inlet, cord, and load plan before installation.

You pick the circuits

It wires directly into your existing subpanel. When the power goes out, you plug your source into the Reliance Panel and choose exactly which circuits to keep running.

Hours of backup

Even a small portable generator should power your essentials for 3+ hours depending on the load — plenty to keep the food cold, the house warm, and a few lights on.

A fraction of whole-home cost

Get real outage protection for a fraction of the tens of thousands that whole-home backup systems cost.

Specs

Choose the panel and power source that fit your home.

6-Circuit Transfer Panel (30A)

Circuits: 6, each individually breaker-protected
Voltage: 125V / 250V
Max power: 3,750W (125V) / 7,500W (250V)
Rated current: 30A
Power inlet: NEMA L14-30
Enclosure: Gray metal
Dimensions: 7.75" × 11.25" × 4.75"
Warranty: 5 years

10-Circuit Transfer Panel (50A)

Circuits: 10 poles — two 240V + six 120V, each breaker-protected
Voltage: 125V / 250V
Max power: 6,250W
Rated current: 50A
Power inlet: NEMA SS2-50 (CS6375)
Enclosure: Gray metal
Dimensions: 11.75" × 11.25" × 4.75"
Warranty: 5 years

EcoFlow Delta Pro (Power Source 1)

Capacity: 3.6 kWh (LFP)
AC output: 3,600W across 5 outlets (7,200W surge)
X-Boost: Runs devices up to 4,500W
Recharge: AC up to 3,000W · Solar up to 1,600W
Expandable: Up to two extra batteries / smart generator
Connectivity: Wi-Fi + Bluetooth
Cycle life: ~6,500 cycles to 50% capacity
Weight: ~99 lb

EcoFlow Delta Pro Ultra (Power Source 2)

Capacity: 6.1 kWh (LFP), expandable
AC output: 7,200W, 120V/240V (10.8kW surge)
UPS switchover: Under 20 ms
Recharge: Solar up to 5,600W
IP rating: IP54
Connectivity: Wi-Fi + Bluetooth + 4G
Cycle life: 80% capacity after 3,500 cycles
Warranty: 5 years

+ Ultra Extra Battery (Power Source 3)

Adds: 6.1 kWh — roughly doubles the Ultra to ~12 kWh
Cells: EV-grade LFP with dual BMS
Setup: Plug-and-play; monitored in the EcoFlow app
Warranty: 5 years

What the install includes

We mount the Reliance Panel and wire it to one existing subpanel, right next to the circuits you want backed up — a clean, tidy install like the example shown.

The prices here cover that standard install. If your setup is different — say a separate upstairs and downstairs panel and you want circuits from both backed up — that's a custom job. Reach out and we'll put together a quote for it.

Ask about a custom install

Clean-install photo coming soon

Reliance Panel mounted beside a circuit subpanel

Just want the equipment without installation?Contact us for hardware-only pricing.

Frequently asked questions

What exactly is the Reliance Panel?

It’s a manual transfer panel that a qualified electrician wires to selected circuits in your breaker panel. During an outage, it lets you safely feed those circuits from a compatible portable power source instead of trying to power the entire home.

What's the difference between the 6- and 10-circuit panels?

The 6-circuit option is the Reliance Controls 306A: a 125/250V, 30A panel with a NEMA L14-30 inlet. The 10-circuit option is the A510A: a 125/250V, 50A panel with an SS2-50 inlet. The larger panel can serve more selected circuits, including supported 240V loads.

What power source should I choose?

Start with the circuits you want to keep running and how long you need backup. The DELTA Pro is a 3.6kWh portable battery for essential loads; the DELTA Pro Ultra starts at 6.1kWh with 120/240V output, and an extra battery takes it to about 12.3kWh. Before installation, we confirm the source, connection hardware, and load plan with you.

Does the price include installation?

Yes. Every bundle price shown is for the equipment professionally installed in Utah, mounted and wired to one subpanel near the circuits you want to back up.

How does payment work?

For a professional install, checkout collects a $50 refundable deposit to reserve your installation. We’ll contact you within two business days to confirm the details and schedule the work; the remaining balance is billed after installation is complete.

Can I buy the hardware without installation?

Yes. Select Hardware only in the configurator and pay the full equipment price at checkout. We’ll follow up to arrange pickup or delivery in Utah.

Ready for outage-proof peace of mind?

Build your bundle above, or talk to us about the right setup for your home.

Build Your Bundle Talk to Us
